OBJ Export for SolidWorks

OBJ file export add-in for SolidWorks

This program is really a Wavefront® OBJ file move add-in for SolidWorks®. This particular add-in gives SolidWorks the opportunity to export 3D solid plus surface data from the SolidWorks part and set up document to meshes within an OBJ file.

This program tessellates the solid bodies within a SolidWorks part or even assembly document into personal triangular meshes. These meshes are then exported to an OBJ file because mesh objects. The level of tessellation can become controlled by adjusting the resolution slider in the This program options dialog box. A lower resolution will yield coarse works (lesser faces), whereas the higher resolution will end result in finer meshes (more faces). You can even choose in order to have the Y Axis point upwards.

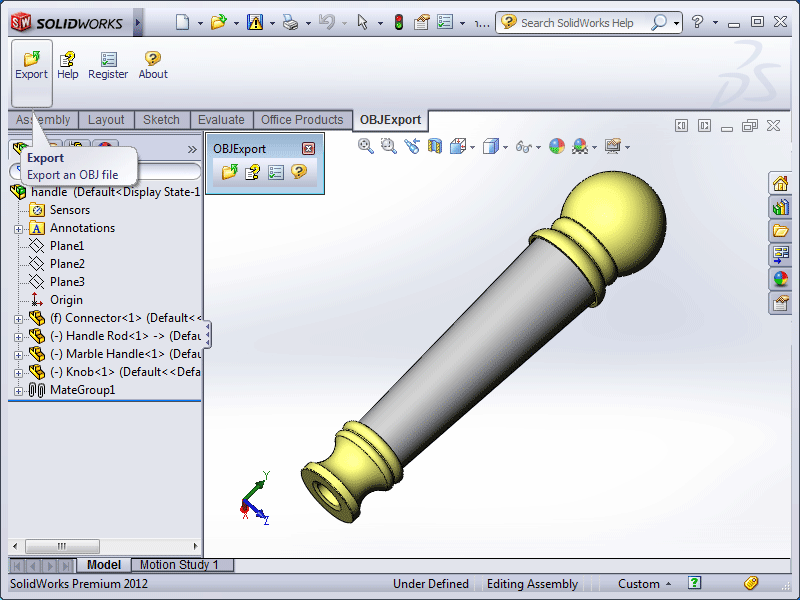

OBJ Move for SolidWorks is extremely user friendly. Once installed, this automatically loads itself directly into SolidWorks and adds a new submenu called "OBJExport" to the SolidWorks menu.

The OBJExport submenu consists of the following commands:

# Export - Export meshes to an OBJ file

# Help - Display the This program help document

# Register - Sign up your copy of This program

# About - Display the particular This program About package

OBJ Move for SolidWorks comes along with detailed documentation for every control as well as the tutorial to get started on in the particular shortest possible time.

The OBJ File Format

The OBJ file format is a geometry definition file format first developed by Wavefront Technologies for its Advanced Visualizer animation package. The file format is open plus has been adopted simply by other 3D graphics program vendors, which makes it an generally accepted geometry file structure. The OBJ extendable is the simple data format that will represents 3D geometry only - namely, the positioning of each vertex, the texture coordinate associated with a vertex, the normal at each vertex, and the faces that make each polygon.

You can find some alternatives for OBJ Export for SolidWorks here .
OBJ Export for SolidWorks

Requirements :

SolidWorks 2000 and above
