OBJ Import for Solid Edge

OBJ file import add-in for Solid Edge

OBJ Import for Solid Advantage is a Wavefront (. obj) file import add-in for Solid EdgeŽ. This particular plug-in gives Solid Advantage the opportunity to import geometric information from OBJ files.

OBJ Import for Solid Advantage reads polygon mesh information kept in OBJ files plus imports it into Strong Edge. A polygon nylon uppers within an OBJ file is usually composed of a set associated with triangular and/or quad encounters. OBJ Import for Strong Edge creates trimmed planar surfaces for each triangle/quad and knits them jointly to create an entire body. If the polygon nylon uppers is closed (i. electronic. it does not include boundary edges) then OBJ Import for Solid Advantage will create a shut body feature, otherwise a good open surface is going to be developed.

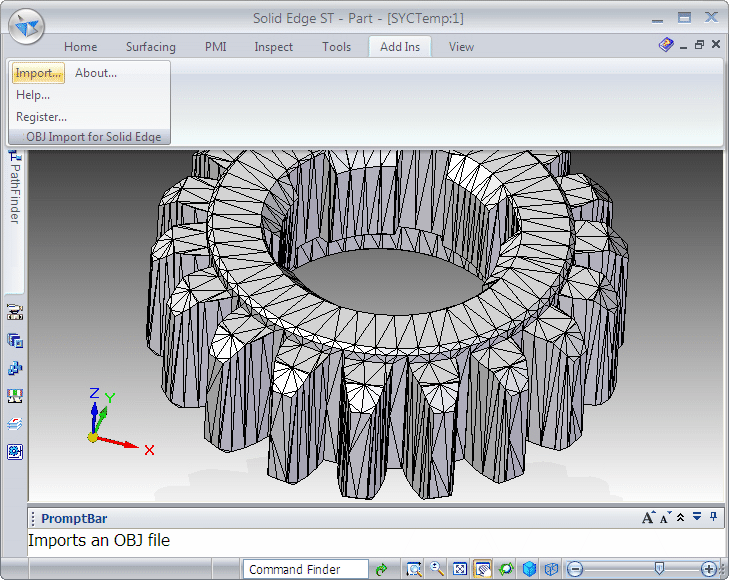

OBJ Import for Strong Edge is very user friendly. Once installed, it immediately loads itself into Strong Edge and adds a brand new submenu called "OBJ Transfer for Solid Edge" towards the Solid Edge Applications menus.

The OBJ Import regarding Solid Edge menu contains the following commands:

# Import - Import a good OBJ file

# Assist - Display the OBJ Import for Solid Advantage help file

# Sign up - Register your duplicate of OBJ Import regarding Solid Edge

# Regarding - Display the OBJ Import for Solid Advantage About box

OBJ Transfer for Solid Edge arrives with detailed documentation regarding each command in addition to a tutorial to get you began in the least amount of period.

The OBJ Extendable

The particular OBJ file format is really a geometry definition file structure first developed by Wavefront Technologies for the Advanced Visualizer animation package. The document format is open plus has been adopted simply by other 3D graphics program vendors, making it a good universally accepted geometry document format. The OBJ document format is a basic data format that symbolizes 3D geometry alone : namely, the position associated with each vertex, the structure coordinate of a vertex, the particular normal at each vertex, and the faces that will make each polygon.

You can find some alternatives for OBJ Import for Solid Edge here .
OBJ Import for Solid Edge

Requirements :

Solid Edge 10 and above
