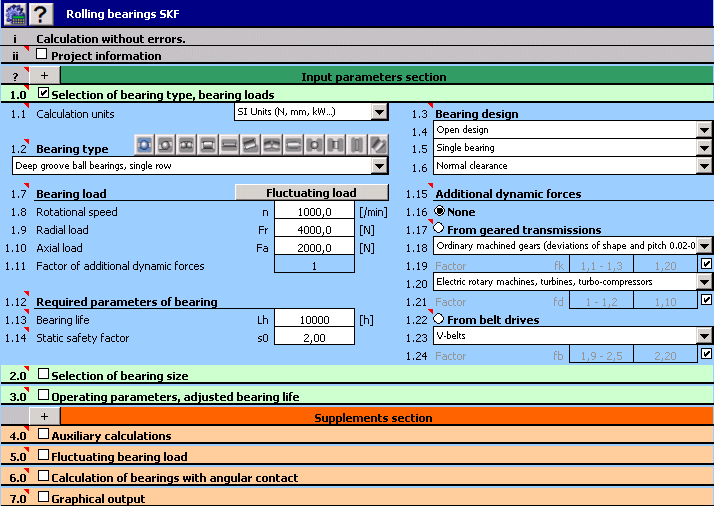

Calculation and check of rolling bearings
This particular calculation can be utilized for the selection, computation and check of moving bearings of the business FAG, INA.
The
program provides solutions to the particular following tasks:
- Choice and check of the suitable bearing. The record includes a database associated with approx. 10, 000 various rolling
bearings SKF in every basic types and style.
- Calculation of simple bearing parameters (life, stationary safety, etc. ).
: Calculation of adjusted showing life acc. to the particular new methodology of INTERNATIONALE ORGANISATION FÜR STANDARDISIERUNG 281.
- Calculation associated with load with a set of tapered roller bearings or a pair slanted contact ball bearings resp.
- Support of SECOND CAD (AutoCAD, AutoCAD LUXURY TOURING, IntelliCAD, Ashlar Graphite, TurboCAD) and 3D CAD completely
calculation package (Autodesk Developer, SolidWorks, SolidEdge, Pro/E).
As well as the above given basic computations, the document also contains several other auxiliary computations
(e. g. a computation of lubricant operational viscosity, calculation of mean tons for bearings loaded simply by variable loads,
calculation associated with permitted bearing speed, and so on. ).
The programme utilizes data, procedures, algorithms plus other information from specialist literature, catalogues of
running bearings FAG, INA, INTERNATIONALE ORGANISATION FÜR STANDARDISIERUNG, ANSI, SAE standards plus other sources.
Related specifications: ISO 15, ISO seventy six, ISO 104, ISO 281, ISO 355, ISO 1132, ISO 5593, ISO 5753, ISO 3448, INTERNATIONALE ORGANISATION FÜR STANDARDISIERUNG
15312, DIN 615, DIN 620, DIN 625, DIN 628, DIN 630, DIN 635, DIN 711, DIN 715, DIN 720, DIN 722, DIN 728,
BS 290, BS 292, BS 3134. This module is really a component of MITCalc - Mechanised and Technical Calculation Package deal for
gear, belt plus chain drives, bearings, comes, beam, shaft, bolt link, shaft connection, tolerances and lots of
others.
|
Requirements :
MS Excel (2000, XP, 2007...)
|
|
